pedestrian swing barrier rfid card reader security turnstile speed gate

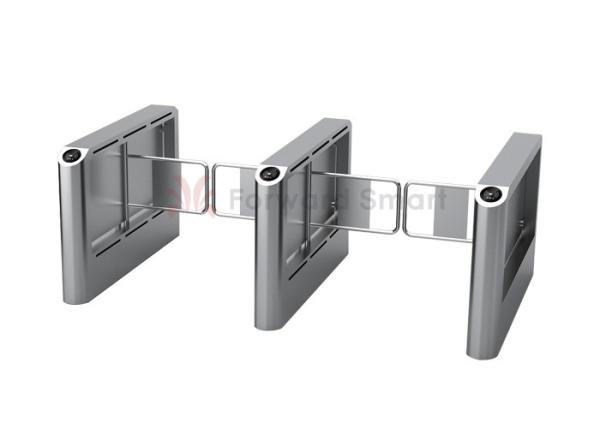

Swing Turnstile Features :
1. Housing Material: bright 304# stainless steel, 1.5mm thick, laser-cut smooth sides.
2. Built-in card-swiping face plate, 5mm thick, seamless combination with housing.
3. Single/dual directional card-swiping function, with swiping indicators and direction indicator.
4. Acrylic barrier gate, 10mm thick, night light is optional for swing turnstile.
5. Support Fire Signal open, release deadlock status after outage for free passage and for preventing panics.
It can be set for constant open or close with remote control function.
6. With sound and light alarms for below abnormal situations: Anti-tailing, anti-intruding, anti-reverse- passage.
7. Swing turnstile is with 4 pairs of hidden infrared fence.
8. The Turnstile is very easy to integrate the readers and writers of ID, IC, RFID, Fingerprint, bar code, card collectors, cellphone 2D codes, facial recognition instrument, etc.
Product Application
Swing gate opener, swing gate mechanism, Boom Barrier Swing Turnstile Gate

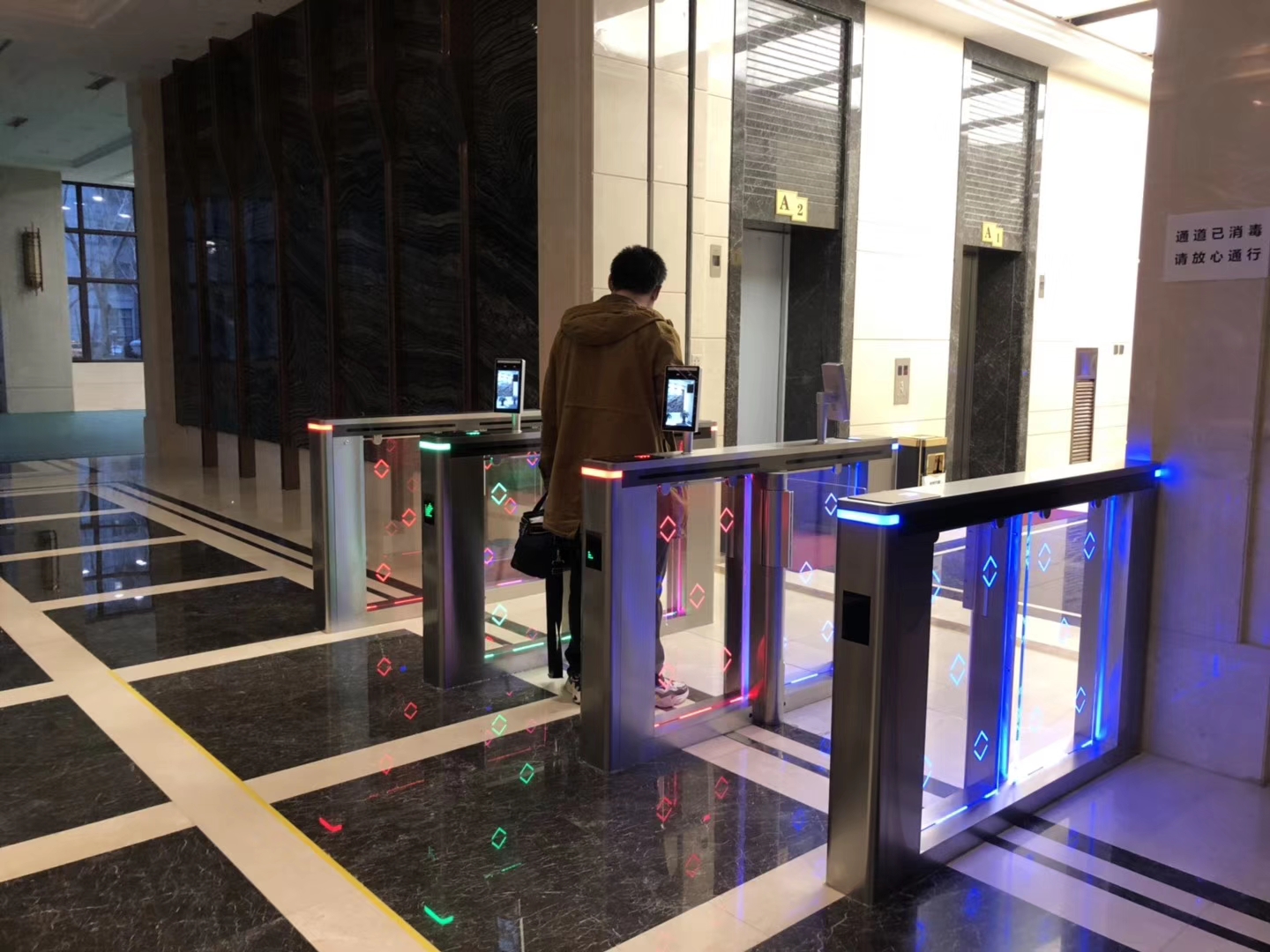

Full automatic swing turnstile is used for pedestrian management, such as metro/ train/ bus station, airport, office building, school, hospital, government building, tourist site and other places as well.
The main feature of this turnstile is swing arm anti-collision function(encoder technology),you can even kick the swing arm.
| Name | Flap Barrier/Flap Turnstile | Transmission | Sine Linkage |
| Model No. | WQH-TY04 | Frenquency | 50-60Hz |
| Housing Size | 420x330x980mm | Control type | IC/ID/Barcode control accepted |
| Housing Material | 304 grade stainless steel optional | Max Channel Width | 600mm |
| Passing speed | 30 person/min | Logic voltage | 24v |
| Working voltage | AC220V±10V, 50HZ | Direction | Single or Bi-directional |
| Motor voltage | 220V | Operating humidity | ≤90% non-condensing |
| Rated Power | 80w | Operation life | ≥5 million times |
| Working temperature | -45°C--+80°C | Net Weight | 60kg |
| Communication Interface | RS485/RS232 | Gross Weight | 65kg |
OEM Optical Swing Turnstile Gate with Bar code QR Reader
Features:
1 with fault detection and alarm function for illegal come.
2..time of reflection test is adjustable after read the card.
3.have read card and memory function.the user can set up access to read cards many times or pass though access one.
4 with automatic reset function, passenger read valid card, pass though within the stipulated time, the system will automatically cancel the access permissions for users
5 has a unified, standard external electrical interface ,can be connected many kinds of reading cards.can realize remote control and manage by operating the computer.
